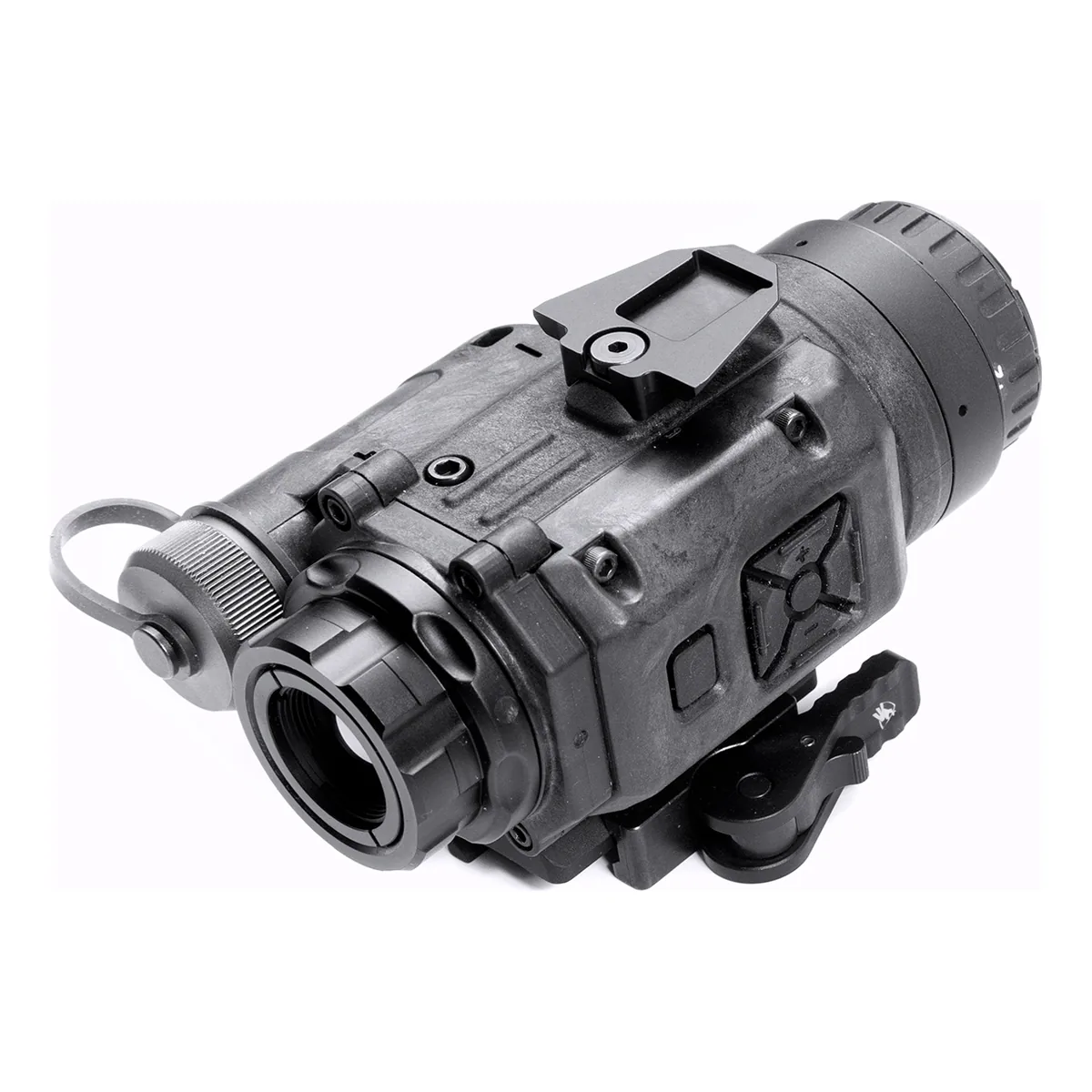

N-Vision NOX18 — 640×480 thermal handheld monocular

How far you can see a person

58 m make out detail94 m tell what it is375 m spot it┆ maker’s claim

501002005001k2k5k m

Calculated from the sensor's pixel pitch and the lens focal length, for clear air.

N-Vision quotes 690 m, 1.8× our figure, because makers usually measure against a person’s full height rather than their width. Why the numbers differ

N-VisionHandheld monocular · 640-class

N-Vision NOX18

Approx. price: ~$5,395
Sensor: 640×480 · 12 µm
Lens: 18 mm · 1×
Weight: 15.3 oz

Price and availability on N-Vision’s site may differ.

Best for

Scanning from a stand, a truck or a field edge

01Specifications

As published by N-Vision. Sources: nvisionoptics.com (store price $5,395, MSRP $6,195; 18 mm F1.0; multi-use weapon, helmet, handheld; weight and length are the 18650 config without mount, 13.5 oz, 5.0 in on CR123; 4-7+ h on 18650, ~1.5 h on CR123; 753 yd detection; video out to an external recorder only per NOX User Manual Rev 1.1), nvisionoptics.com warranty page.

Sensor: 640×480
Pixel pitch: 12 µm
Refresh rate: 60 Hz
Lens: 18 mm
Base magnification: 1×
Digital zoom: up to 8×
Field of view: 24.3° horizontal
Display: 640x480 OLED
Claimed detection: 690 m
Claim basis: man-size target (typical)
Run time: 4 h
Battery type: 18650
Weight: 15.3 oz
Length: 6.4″
Laser rangefinder: No
Ballistic calculator: No
Records video: No
Wi-Fi: No
IP rating: IP67
Warranty: 5 years
Country of origin: USA
Approx. price: ~$5,395

02Pros and cons

From the published specs. What owners report is in the next section.

For it

640×480 sensor, 2.8× the detail of an entry-level 384
Smooth 60 Hz picture on a running animal
Takes 18650 batteries you can swap in the field
Waterproof (IP67), survives a dunking
Warranty: 5 years
Wide 24° view for scanning a field

Against it

Sensitivity (NETD) not published
Only 4 h of battery
No rangefinder, so you judge distance by eye
Does not record video
~$5,395, well above the ~$1,995 typical for handhelds here
Zoom past 1× is digital and gets blurry

03What owners say

owner discussions, 2023–2025

Summarised from 14 public owner discussions between 2023 and 2025. Owner experience, not a measurement.

The NOX18 is the American-made, BAE-core alternative to the iRay RH25, and that is nearly always how owners frame it. Buyers who want to avoid Chinese-made thermals choose it for that reason, and owners who bridge it with a white-phosphor PVS-14 say the two images are close enough in color that they can almost fuse them. One owner who has run dual band for more than five years has a NOX18 on a Panobridge as his everyday setup, and insists that remote power is a must for useful run time.

The criticism is consistent and comes from experienced owners. The 1x is not a true 1x (owners put it around 0.85 to 0.9x), there is no screen-shift software to align it with a day optic so it cannot really be used as a clip-on, and owners say firmware updates have been rare. Someone who has owned four RH25s, an MH25, a StingIR, a Sidekick and an ST6 called it 'a very weird unit' and only a so-so weapon sight. The usual verdict in head-to-head threads is that the RH25 does more for less, unless US manufacture or the BAE core matters to you.

What owners like

US-made with a BAE core, which is the deciding reason for owners who will not buy iRay or other Chinese-made units.
Bridges well with a white-phosphor PVS-14 for some owners: the colors are close, one owner says he can almost fuse the two, and another cannot tell the magnification apart from his 14.
Serves as a handheld and a dedicated weapon sight at once; it ships with an ADM Picatinny mount already fitted.
Long-term dual-band users keep it on the helmet permanently and use it in daylight as well as at night.

Common complaints

Not a true 1x. Owners put it at roughly 0.85 to 0.9x, which several say makes bridging with night vision awkward, though others do not notice it.
No clip-on software or screen shift. A handful of owners have managed to zero a day optic to its reticle by luck of scope height, but most are told to buy an RH25 instead.
Owners describe it as an older design with few software updates, and one says its dovetail is not recoil-rated.
Range as a scanner disappointed one owner, who says it showed less at distance than he hoped.
On a Wilcox bridge the PVS-14 sits over an inch farther from the eye than the NOX18; owners fixed it by swapping in the Mod Armory bridge arm, which also makes the NOX18's buttons reachable.
One owner's unit stopped powering on after a few months, on CR123, 18650 and USB-C alike.

NOX18 or RH25?

Most owners in these discussions say RH25, because it is a true 1x, has image alignment and works as a clip-on, and costs less. The NOX18 wins if you want a US-made device with a BAE core. Several people who considered both ended up on the RH25 or its international twin, the PFalcon 640+.

Can the NOX18 be used as a clip-on?

Not reliably. It has no screen-shift software to collimate with a day optic. One owner says a very small number of people have zeroed a day scope to an already-zeroed NOX18 reticle because their scope height happened to line up, but there is no reason to plan on it.

How do owners mount it beside a PVS-14?

One long-time user runs it on a Panobridge with remote power. Another found the Wilcox bridge pushed the PVS-14 too far forward and could not rotate both down to line up with the eyes, and fixed it by using the Mod Armory right-side arm on the Wilcox.
