ATN BlazeTrek 6 625 — 640×512 thermal handheld monocular

How far you can see a person

80 m make out detail130 m tell what it is521 m spot it┆ maker’s claim

501002005001k2k5k m

Calculated from the sensor's pixel pitch and the lens focal length, for clear air.

ATN quotes 1,300 m, 2.5× our figure, because makers usually measure against a person’s full height rather than their width. Why the numbers differ

ATNHandheld monocular · 640-class

ATN BlazeTrek 6 625

Approx. price: ~$1,499
Sensor: 640×512 · 12 µm
Lens: 25 mm · 1.75×
Weight: 11.3 oz

Price and availability on ATN’s site may differ.

Best for

Walk-and-scan glassing from a jacket pocket

01Specifications

As published by ATN. Sources: atncorp.com (product page + compare API, BlazeTrek 6 manual; ATN list $2,085).

Sensor: 640×512
Pixel pitch: 12 µm
NETD: ≤18 mK
Refresh rate: 50 Hz
Lens: 25 mm
Base magnification: 1.75×
Digital zoom: up to 14×
Field of view: 17.5° horizontal
Display: 800x600 OLED
Claimed detection: 1,300 m
Claim basis: unspecified (ATN product page 1300 m)
Run time: 6.5 h
Battery type: Internal Li-ion
Weight: 11.3 oz
Length: 6.2″
Laser rangefinder: No
Ballistic calculator: No
Records video: Yes
Wi-Fi: Yes
IP rating: IP67
Warranty: 5 years
Approx. price: ~$1,499

02Pros and cons

From the published specs, not owner reports.

For it

640×512 sensor, 3× the detail of an entry-level 384
Sensitive sensor that picks out small heat differences on humid or rainy nights (56th-best of 285 that publish it)
Waterproof (IP67), survives a dunking
Records video and connects to a phone app
Warranty: 5 years
Wide 17° view for scanning a field

Against it

Built-in battery, so no swapping in the field, and only 6.5 h of it
No rangefinder, so you judge distance by eye
Zoom past 1.75× is digital and gets blurry

03Compare the 625

04Related units

More from ATN →All 640-class →All 25 mm →

ATN BlazeTrek 625 — 640×512 thermal handheld monocular

ATNHandheld monocular

ATN BlazeTrek 625

Est. detection

521 m

Maker’s claim

1,190 m

Sensor: 640×512
Pitch · Hz: 12 µm · 50
Lens: 25 mm

11.3 oz~$1,189

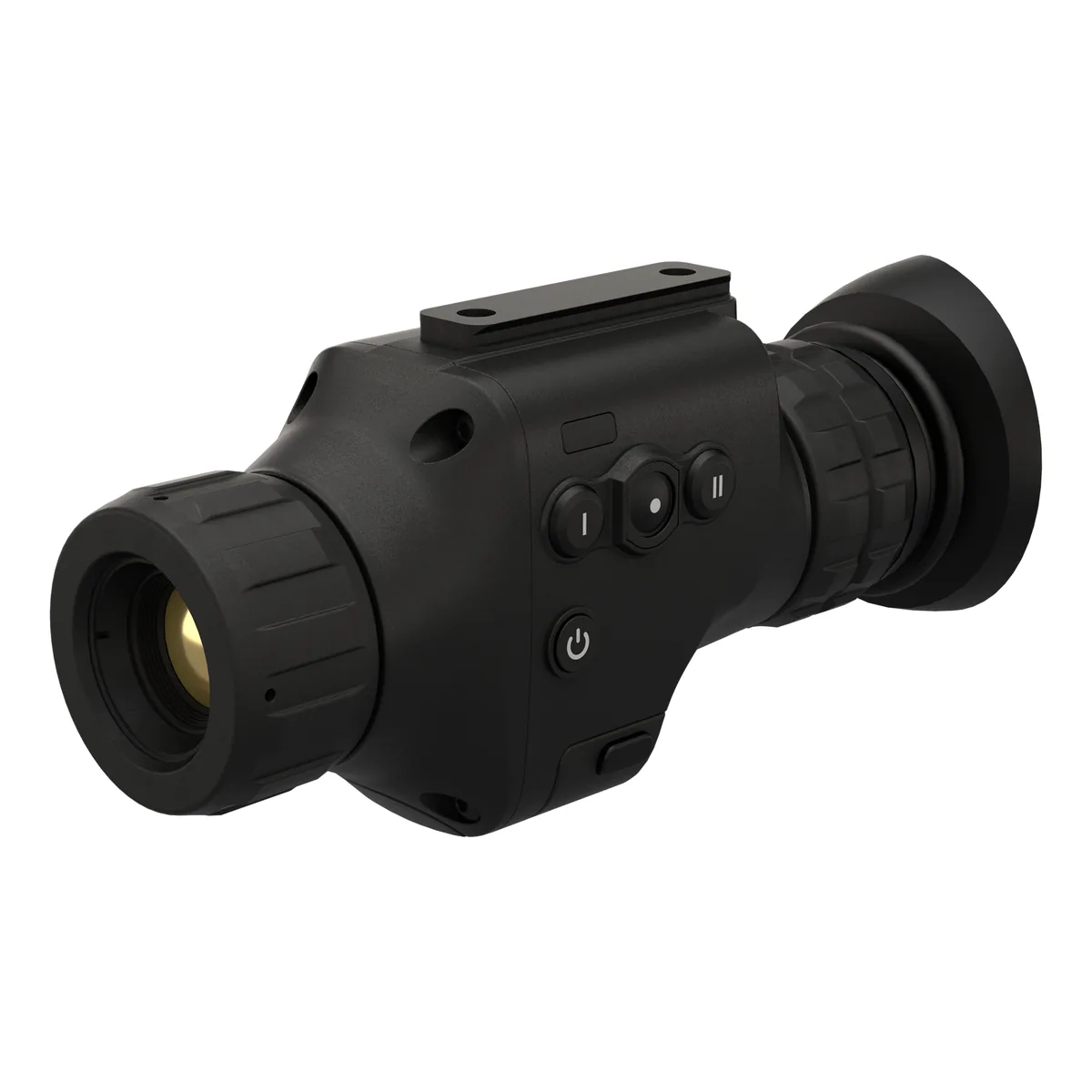

ATN ODIN LT 640 2-8x — 640×480 thermal handheld monocular
