Calculated from the sensor's pixel pitch and the lens focal length, for clear air.
How far you can see a person
61 m make out detail99 m tell what it is396 m spot it┆ maker’s claim
501002005001k2k5k m
Armasight quotes 709 m, 1.8× our figure, because makers usually measure against a person’s full height rather than their width. Why the numbers differ
ArmasightHandheld monocular · 640-class
Armasight Sidekick Pro 640 1-4x19
- Approx. price
- ~$2,999
- Sensor
- 640×480 · 12 µm
- Lens
- 19 mm · 1×
- Weight
- 9 oz
Buy from Armasight
Price and availability on Armasight’s site may differ.
Best for
Walk-and-scan glassing from a jacket pocket
01Specifications
As published by Armasight. Sources: armasight.com (SKU TAVT66MN9SIDE1P1; in stock at $2,999, no MSRP shown; Gen 4 A-SWAP core, Thermal Sensitivity field blank; 2x 16340 rechargeable (CR123-size) up to 5.5 h; 254 g; 105 mm; one-touch in-unit video recording; no wireless feature listed).
- Sensor
- 640×480
- Pixel pitch
- 12 µm
- Refresh rate
- 60 Hz
- Lens
- 19 mm
- Digital zoom
- up to 4×
- Field of view
- 23.16° horizontal
- Display
- 1920x1080 OLED
- Claimed detection
- 709 m
- Claim basis
- human-sized target
- Run time
- 5.5 h
- Battery type
- CR123
- Weight
- 9 oz
- Length
- 4.1″
- Records video
- Yes
- Wi-Fi
- No
- IP rating
- IP67
- Warranty
- 3 years (with registration)
- Country of origin
- USA (assembled from U.S. and global components)
- Approx. price
- ~$2,999
02Pros and cons
From the published specs, not owner reports.
For it
- 640×480 sensor, 2.8× the detail of an entry-level 384
- Smooth 60 Hz picture on a running animal
- Takes CR123 batteries you can swap in the field
- Light at 9 oz, 14th-lightest of the 112 handhelds here
- Waterproof (IP67), survives a dunking
- Wide 23° view for scanning a field
Against it
- Sensitivity (NETD) not published
- No rangefinder, so you judge distance by eye
- ~$2,999, well above the ~$1,995 typical for handhelds here
- Zoom past 1× is digital and gets blurry
03Compare the 1-4x19
04Related units
ArmasightHandheld monocular
Armasight Sidekick 640
Est. detection
396 m
Maker’s claim
709 m
- Sensor
- 640×480
- Pitch · Hz
- 12 µm · 60
- Lens
- 19 mm
60 Hz · 9 oz~$3,299
ArmasightHandheld monocular

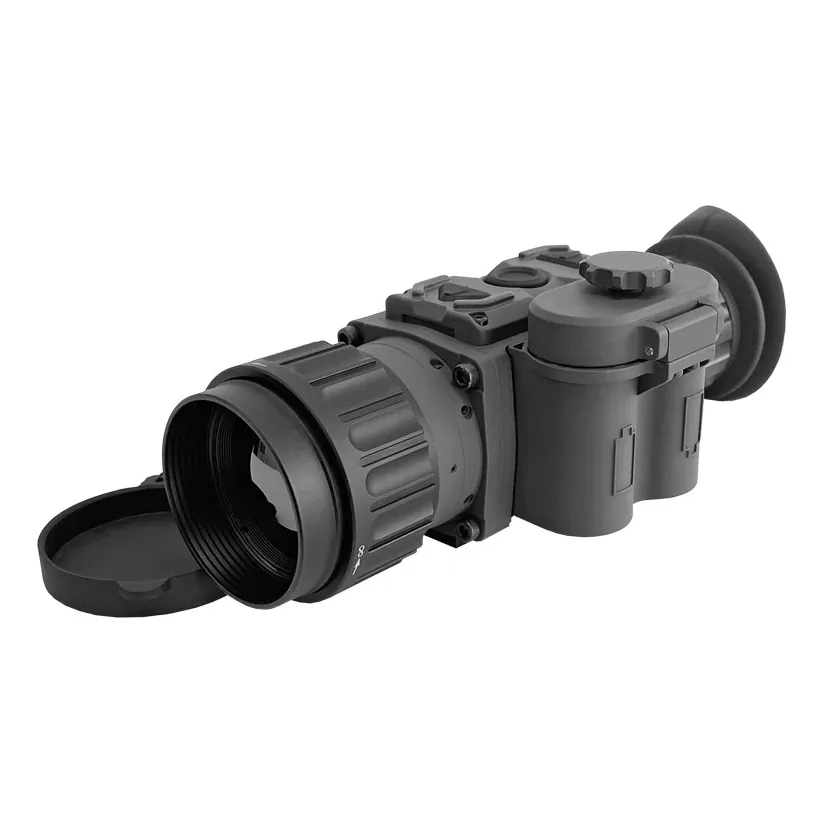

Armasight Warden 640 2-8x35
Est. detection
729 m
Maker’s claim
1,300 m
- Sensor
- 640×480
- Pitch · Hz
- 12 µm · 60
- Lens
- 35 mm
60 Hz · 15.8 oz~$2,499
TrijiconHandheld monocular
Trijicon IR-PATROL IRMO-250
Est. detection
396 m
Maker’s claim
not published
- Sensor
- 640×480
- Pitch · Hz
- 12 µm · 60
- Lens
- 19 mm
60 Hz · 16 oz~$6,895
